The ATMEGA328P-PU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega328P-PU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.
The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU),allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.
The ATmega328P-PU AVR is supported with a full suite of program and system development tools including: C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators, and Evaluation kits.
High Performance, Low Power Design
8-Bit Microcontroller Atmel® AVR® advanced RISC architecture
131 Instructions most of which are executed in a single clock cycle
Up to 20 MIPS throughput at 20 MHz
32 x 8 working registers
2 cycle multiplier
32KB of of programmable FLASH
1KB of EEPROM
10,000 Write and Erase Cycles for Flash and 100,000 for EEPROM
Data retention for 20 years at 85°C and 100 years at 25°C
Optional boot loader with lock bits
In System Programming (ISP) by via boot loader
True Read-While-Write operation
Programming lock available for software security
I/O and Package
23 programmable I/O lines
28 pin PDIP package
Operating voltage:1.8 – 5.5V
Operating temperature range:40°C to 85°C
0-4 MHz at 1.8-5.5V
0-10 MHz at 2.7-5.5V
0-20 MHz at 4.5-5.5V
Low power consumption mode at 1.8V, 1 MHz and 25°C:
Active Mode: 0.3 mA
Power-down Mode: 0.1 μA
Power-save Mode: 0.8 μA (Including 32 kHz RTC)
Package: Lead Free PDIP 28

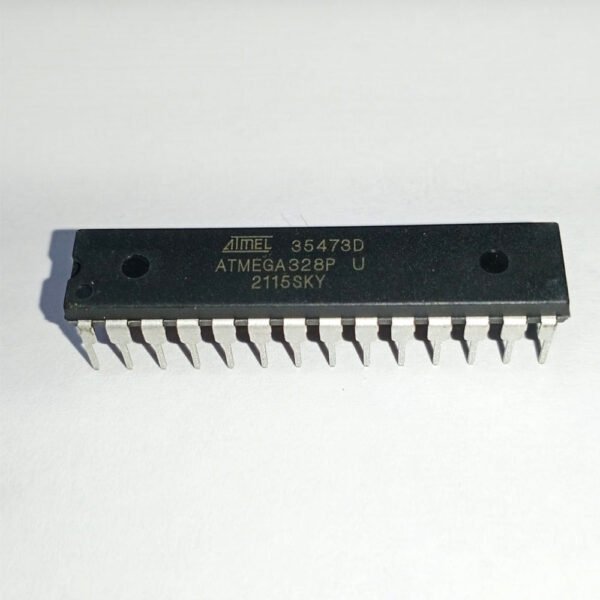

* Product Images are shown for illustrative purposes only and may differ from actual product.
