Description

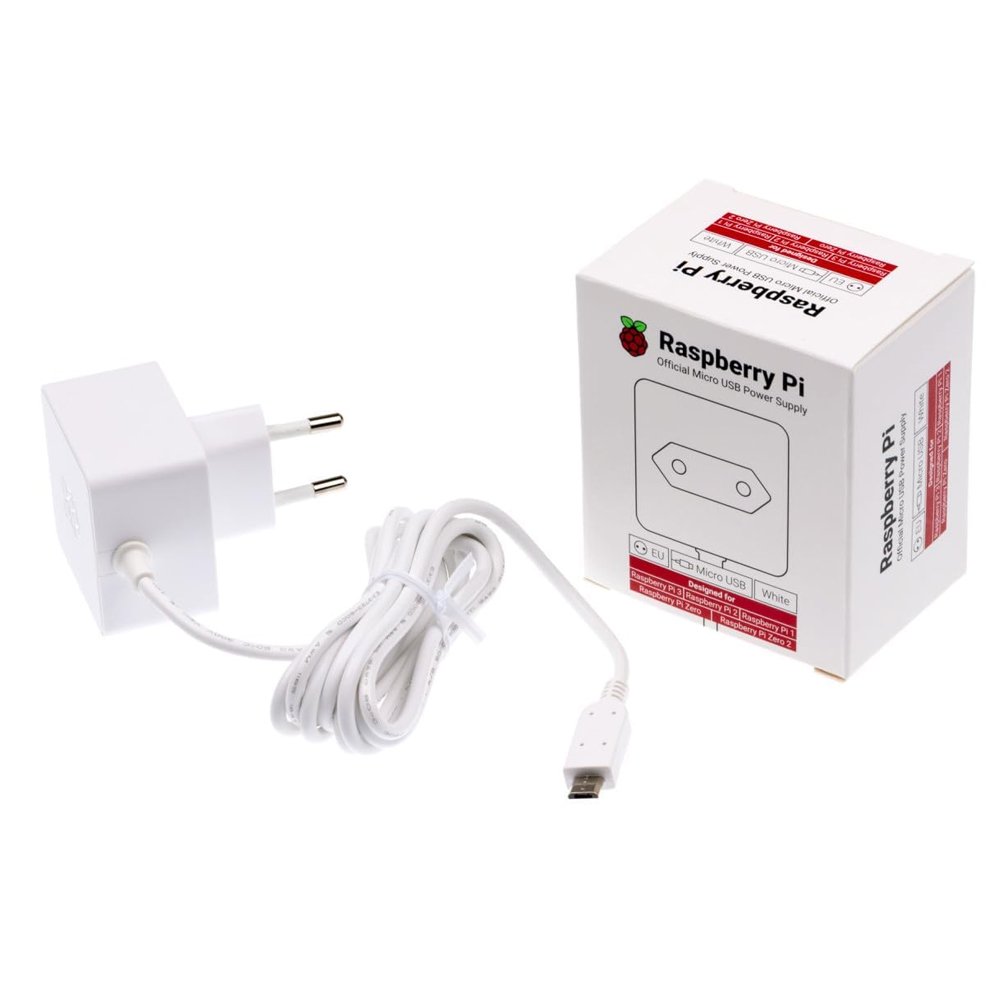

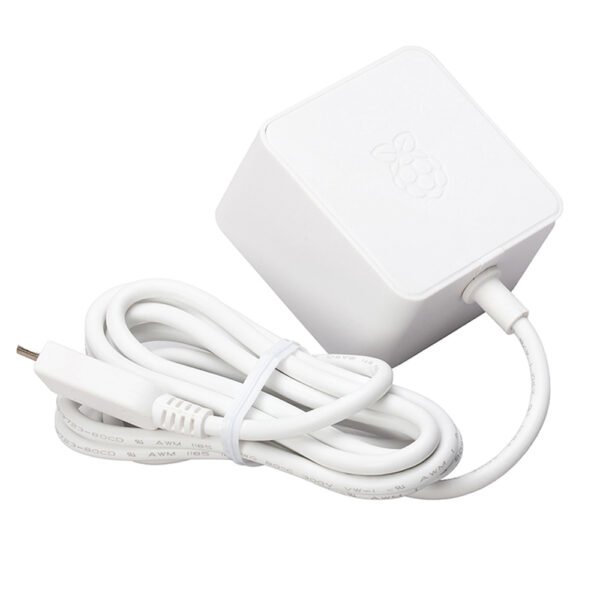

- The official Raspberry Pi Micro USB Power Supply is a reliable and versatile solution designed to power Raspberry Pi computers equipped with a micro USB connector. With a stable output voltage of +5.1V DC, minimal load and line regulation, and efficient power delivery, this power supply provides consistent and dependable performance. Equipped with a 1.5m 18AWG output cable and a micro USB connector, this power supply offers convenience and ease of use for Raspberry Pi enthusiasts worldwide. Whether you’re a beginner or an experienced user, the official Raspberry Pi Micro USB Power Supply provides the necessary power support with a focus on performance, efficiency, and safety.
- Output:
- Output Voltage: +5.1V DC
- Minimum Load Current: 0.0A
- Nominal Load Current: 2.5A
- Maximum Power: 12.5W
- Load Regulation: ±5%
- Line Regulation: ±2%
- Ripple & Noise: 120mVp-p
- Rise Time: 100ms maximum to regulation limits for DC outputs
- Turn-on Delay: 3000ms maximum at nominal input AC voltage and full load.
- Protection: Short circuit protection, Overcurrent protection
- Efficiency: 80.73% minimum (output current from 100%, 75%, 50%, 25%)
- Output Cable: 1.5m 18AWG
- Output Connector: micro USB
- Input:
- Voltage Range: 100–240Vac (rated), 96–264Vac (operating)
- Frequency: 50/60Hz ±3Hz
- Current: 0.5A maximum
- Power Consumption (no load): 0.075W maximum
- Inrush Current: No damage shall occur, and the input fuse shall not blow.
